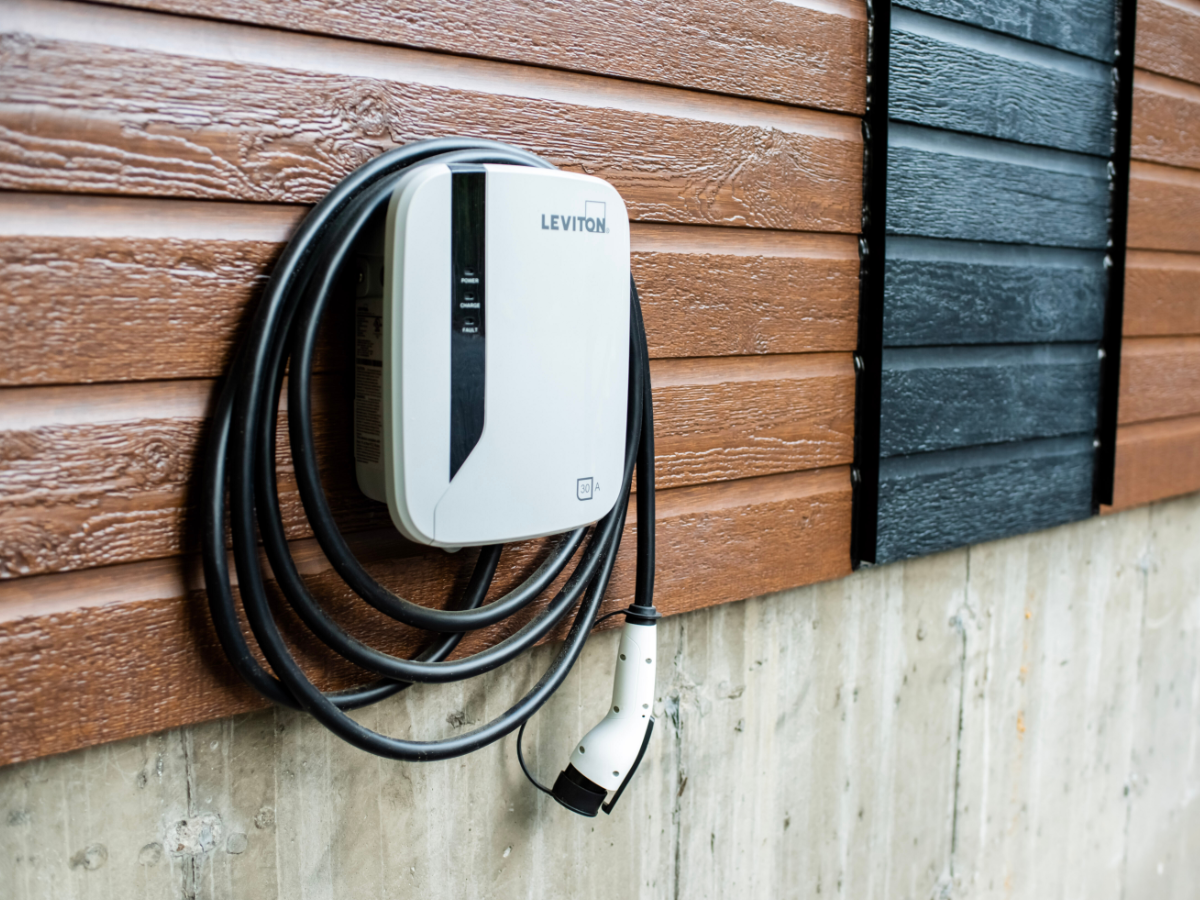

Are you among the millions of Americans who’ve turned away from the pumps and embraced electric vehicles (EVs)? If so, installing an at-home EV charger could make your life a lot easier. It’s safe, convenient and cost-effective — with one potential catch.
It takes lots of power to charge a vehicle, and your existing electrical system may not be up to the task. You’ll likely need a 240-volt dedicated circuit to do the job properly, but don’t fret. Miami’s on-time electricians are here to break down everything you need to know.
Quick Takeaways
- A dedicated circuit is a must-have for most Level 2 EV chargers
- Level 1 chargers may work with standard outlets, but caution is advised
- A dedicated circuit makes charging safer, smoother and more reliable
- Be sure to hire a licensed electrician and obtain proper permits
- Plan for the future with high-capacity circuits and solar integration
Electricity 101: What Are Dedicated Circuits?
Peek inside your service panel and you’ll see a breaker for each of the circuits that make up your home’s electrical system. Most of these are shared 120-volt circuits, which usually power all outlets and fixtures in a particular room. However, you may notice a few exceptions.
Some appliances — electric ranges, HVAC units, washers and dryers — draw too much power to share a standard circuit with other fixtures. Instead, these energy-hungry devices are connected to dedicated 240-volt circuits. Dedicated circuits are specifically designed for individual high-draw appliances, providing steady power without the risk of overloading.
Why Your EV Charger (Probably) Needs a Dedicated Circuit
As you might imagine, charging an electric vehicle isn’t quite as simple as plugging in a laptop, phone or tablet. Even the least powerful chargers use as much energy as high-end space heaters or window AC units. This can put significant strain on your electrical system, but is a dedicated circuit really necessary?
To find out, let’s start with the type of charger you plan to use.
Level 1 Chargers
Level 1 chargers are plug-and-play devices that work with any standard 120-volt outlet. They’re the slowest charging option available, but they also use the least power. Even so, investing in a dedicated circuit is a worthwhile precaution to prevent tripped breakers — or worse.
If you must use a shared circuit, proceed with caution. Make sure you know which fixtures share the same breaker and keep the load as low as possible while the charger is active. In particular, never use other appliances or high-draw devices on the same circuit.
Level 2 Chargers
Tired of waiting all day and night for your EV to charge? Level 2 chargers are significantly faster, but that speed comes at the cost of higher electrical demands. Because they use so much energy, they risk overloading a shared circuit and potentially even overheating the wiring, posing a serious fire hazard.
Consequently, these systems should only be used with a dedicated circuit built to handle the increased demand. In fact, the National Electrical Code (NEC) requires that Level 2 EV chargers be connected to a dedicated 240-volt circuit in nearly all situations.
DC Fast Chargers
DC fast chargers bypass your vehicle’s onboard hardware and send power straight to the battery, restoring most of its charge in minutes. Alas, even a dedicated circuit isn’t enough for these supercharged EV chargers. They require serious infrastructure that just isn’t practical for home use.
Adjustable Chargers
Adjustable EV chargers offer the ability to charge at different rates depending on your needs. They’re most often used to take advantage of changing electricity rates throughout the day, but some units also integrate automatic load balancing to protect against circuit overloads.
As useful as these features are, however, they’re far from foolproof. A dedicated circuit is still the best option to enjoy stable, trouble-free charging at home.
Benefits of a Dedicated Circuit for EV Charging
Connecting your EV charger to a dedicated circuit isn’t just a regulatory requirement. It’s also a smart idea that can genuinely improve your home charging experience.
A dedicated power source offers plenty of perks, including:
- Greater Peace of Mind: Why risk pushing your electrical system to the limits? Dedicated circuits are built to minimize potential hazards and keep you safe.
- Hassle-Free Reliability: With a steady, independent supply of electricity, you can count on your charger to keep your vehicle ready without disruption.
- Shorter Charging Times: A dedicated circuit continuously delivers maximum power, improving performance and resulting in noticeably faster charging.
- Regulatory Compliance: It may take a little more work, but complying with building and electrical codes can save you a ton of trouble in the future.
- Higher Property Values: Electrical upgrades are always a wise investment, and a dedicated EV charging circuit can add real value to your home.

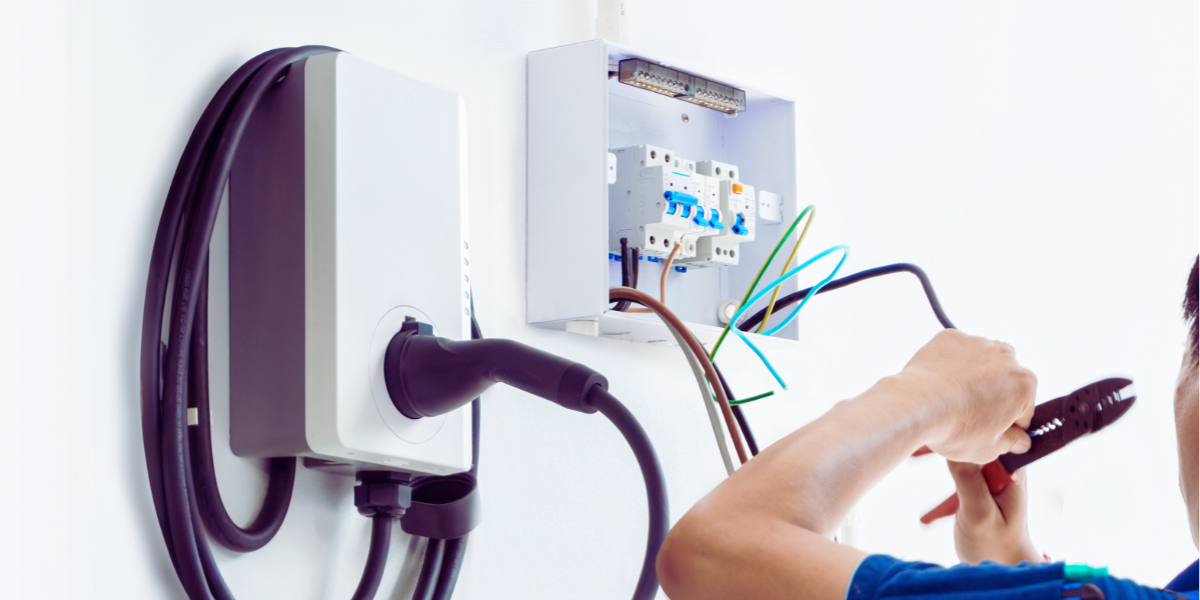

What To Consider When Installing an EV Charging Circuit
Once you’ve decided to invest in a dedicated circuit for your EV charger, it’s time for the next step. Here’s what you need to know to ensure a successful installation:

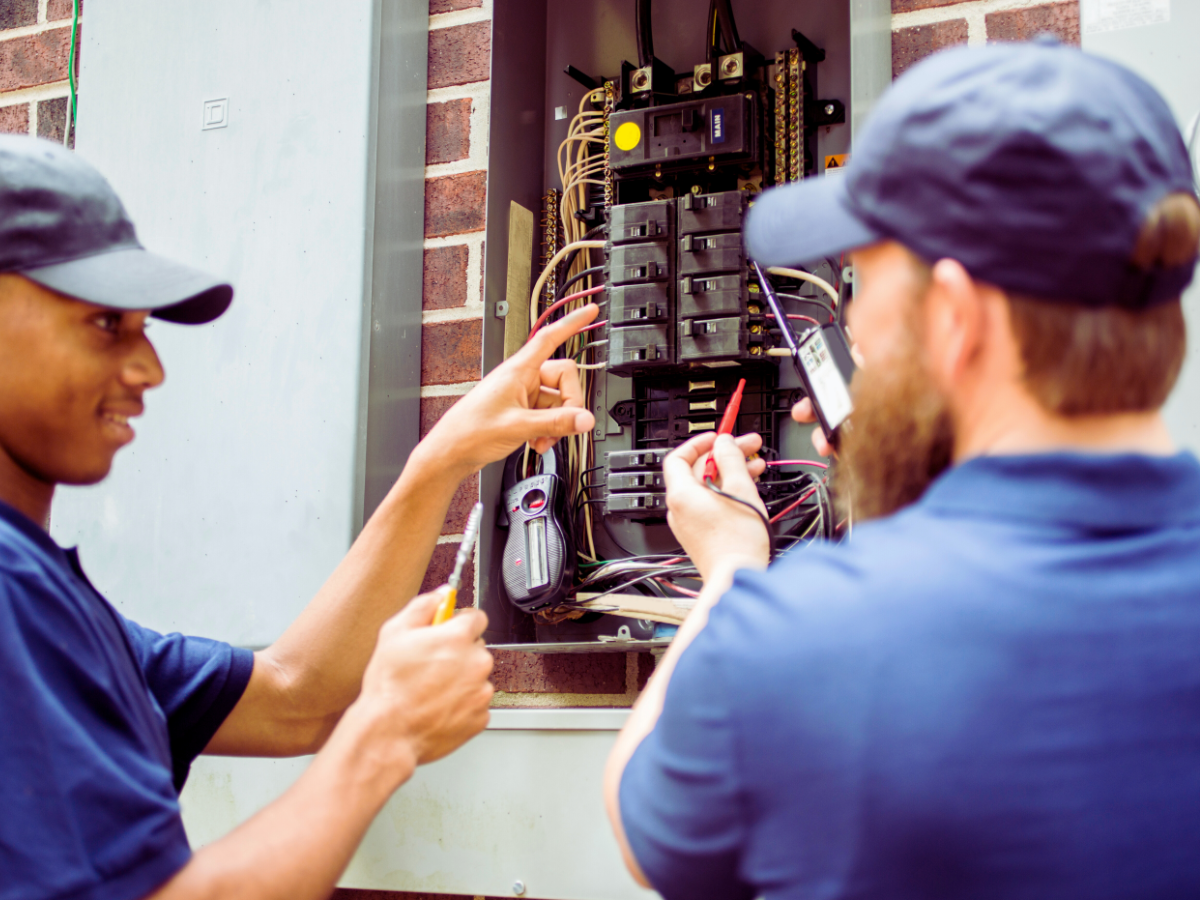

Service Panel Capacity
To support a dedicated circuit, your service panel needs more than just the physical space for a new breaker. It also needs enough spare electrical capacity, which means you’ll have to calculate the total load of the existing circuits. If your panel is already nearing maximum capacity, it may be necessary to install a new subpanel or upgrade your electrical service.
Circuit Breaker Sizing
Not sure what size breaker to use for your new circuit? Check the continuous load rating for your charger and multiply it by 125%. This will give you an approximate minimum rating, although it’s often advantageous to size up and provide a little more headroom.
Wiring and Conduit
The more power flowing through a circuit, the heavier wire gauge you’ll need to prevent overheating. While 12 AWG wire may be sufficient for Level 1 EV chargers, most Level 2 chargers need at least 8 AWG wiring. If you’re considering a charger above 48 amps, you’ll likely need 6 AWG copper wire at a minimum.
Pairing your wiring with the appropriate conduit can help shield it from the elements and dissipate excess heat. Depending on the application, popular choices include rigid PVC, electrical metallic tubing (EMT), rigid metal conduit (RMC) and liquid-tight flexible conduit (LFMC/LFNC).
Grounding and Surge Protection
Per NEC guidelines, any circuit used for EV charging must meet stringent grounding and bonding requirements. In addition, charging stations located outdoors or in moisture-prone areas require a ground-fault circuit interrupter (GFCI) to reduce electric shock hazards.
A surge protection device (SPD), while not strictly required, is also a smart addition to help protect your investment.
Permit and Inspection
It may seem like a hassle, but going through permitting and inspection is a crucial step in any electrical installation. Not only is it a legal requirement, but it’s a key safeguard against mistakes, oversights and shoddy workmanship.
By getting the work professionally inspected and approved, you can rest assured your EV charging system will be installed the right way.
Charging Upgrades to Future-Proof Your Home
Want to take your home charging station to the next level? With a few key upgrades, you can better prepare for the future and create a system that seamlessly adapts to your changing needs.
Install High-Capacity Dedicated Circuits
A 40-amp circuit may be fine for your current EV charger, but that may not always be the case. Faster chargers need more power, and an undersized breaker could become a bottleneck when it’s time to upgrade. With that in mind, select a circuit breaker with enough spare capacity to support more powerful charging solutions.
Use a Smart Charger With Load Balancing
Even with dedicated circuits, your house only has so much power to go around. That can present a real conundrum, especially if you ever plan on owning multiple EVs. To alleviate this problem, consider a smart charging setup that features dynamic load balancing.
Dynamic load balancing is useful in many situations, but it’s ideal for managing multiple charging stations. It works by monitoring the available power and automatically redistributing it as needed. This helps reduce overloading, improve efficiency and optimize charging across all connected vehicles.
Invest in Solar Power or Battery Storage
What’s better than being able to charge your EV at home? Not having to pay for it! By integrating your charging station with a solar panel system, you can channel the Florida sunshine (almost) directly into your car’s battery.
Want to take it even further? Add battery storage to your setup to save excess solar energy and keep the power flowing even after the sun goes down.
FAQs About Dedicated Circuits for EV Chargers
Can I use an existing circuit for my EV charger?
No. To work safely and effectively, a Level 2 charger needs a dedicated 240-volt circuit. These circuits are designed to handle heavy loads and supply steady power to specific high-voltage appliances.
How many amps should a dedicated circuit be for an EV charger?
An EV charger should never use more than 80% of a circuit’s maximum capacity. If your charger draws a continuous load of 24 amps, for instance, your circuit should have at least a 30-amp breaker. Want to install a high-powered charger rated at 48 amps? Opt for a 60-amp circuit at a minimum.
Can I install a dedicated circuit myself?
Possibly, but is it worth the risk? Not only is it inherently dangerous work, but the consequences if something goes wrong can be severe. Hiring a professional ensures the job will be done safely and correctly in accordance with current electrical codes, warranty terms and insurance regulations.
Do Level 1 chargers need a dedicated circuit?
It’s not strictly required, but it’s strongly recommended. Most Level 1 chargers will work with standard 120-volt outlets, but they draw enough power to easily overload a shared circuit. A dedicated circuit reduces the risk of overheating or tripping breakers.
Will I need to upgrade my electrical panel?
Not necessarily. A modern 200-amp service panel should be fine as long as there’s enough space for additional circuits. But if you’re still relying on 100-amp service, it’s time for an upgrade.
Will installing a dedicated circuit increase my home’s value?
Yes! It’s not as exciting as a kitchen or bathroom remodel, but installing a dedicated circuit is a surefire way to add utility while boosting your property value.
